SWA 32E (Swema 3000)

Name: SWA 32E (Swema 3000)
SKU: 771100
Availability: InStock

0 kr exkl. moms

Anemometer

Sensors:

Air Velocity

Air velocity
Air flow
Temperature
50 cm extension rod

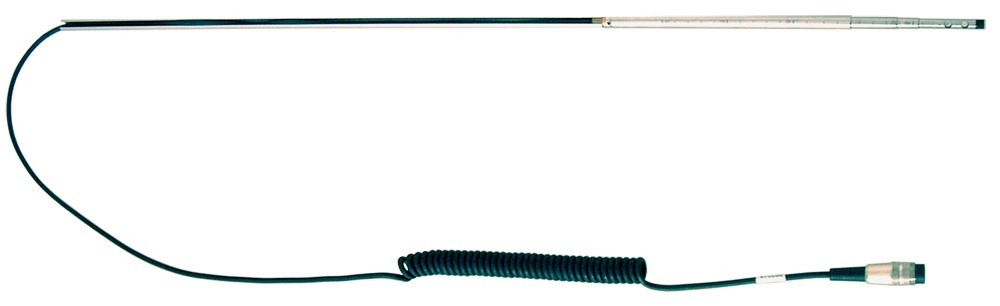

The probe SWA 32E with Swema 3000 measures air velocty, flow and temperature.

SKU: 771100

The probe SWA 32E with Swema 3000 measures air velocty, flow and temperature.

SWA 32E is extendable with a half meter extension rod.

Flow calculation
The duct dimension, such as diameter, height, width, or area, can easily be inserted into Swema 3000. The most common standard dimensions are selected directly. From point measurements in a duct cross section, the instrument calculates and displays the flow in l/s, m3/h, or CFM. The measured flow can be reduced by the use of a k2-factor.

Autosampling
For grilles, you enter the height and width using auto-sampling and a smooth sweeping technique across the grilles. Swema 3000 calculates the rate of air flow in l/s, m3/h, or CFM. Set the time constant down to 0.25 seconds to get 4 measurements per second. The average, standard deviation, max, and min are automatically calculated.

Fume cupboard measurements
A selectable time constant and high accuracy make SWA 32 suitable for fume hood measurements according to EN 14175:3-4:2019.

Miscellaneous
Measuring range
Air Velocity	0,1...10m/s (option 30m/s) at -10...+45°C
Temperature	-20...+80°C
Uncertainty
Air Velocity at 23°C ± 3°C	±0,03m/s at 0,1...0,4 m/s
	±0,04m/s at 0,1...1,33m/s
	±3% read value at 1,33...30m/s
at -10...+45°C	±0,05m/s at 0,1...1,10 m/s
	±4,5% read value at 1,10...30m/s
Temperature at 23°C	±0,3°C at 23°C
at -20...+80°C	±1,0°C
	(Uncertainty according to GUM (JCGM 100ː2008) using a coverage factor of 2, which for a normal
	distribution corresponds to a probability of 95%. It is important to correct the measurement values
	with the corrections stated in the calibration certificate to obtain the above uncertainties.
	Non condensing, non moist air, <80%RH, non aggressive gases.)
	The uncertainty for each probe is the uncertainty for the probe
	together with the Swema 3000. That is, included in the
	uncertainty for each probe is the uncertainty for Swema 3000,
	interchangeability, calibration, temperature dependence,
	hysteresis and repeatability.
General
Fits	Swema 3000 program version 5.40 or higher, update of firmware is possible.
Not for	SwemaAir 300 (old model) - use SWA 31 / 31E.
Selectable resolution	0.1, 0.01, 0.001 m/s
Selectable resolution	0,1 or 0.01°C
Ø	8...10 mm
Length	66cm + 50 cm elongation including 1,5...2,5 m spiral cable
